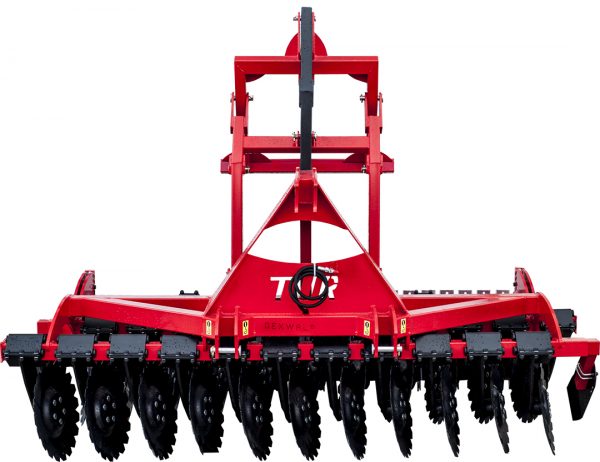

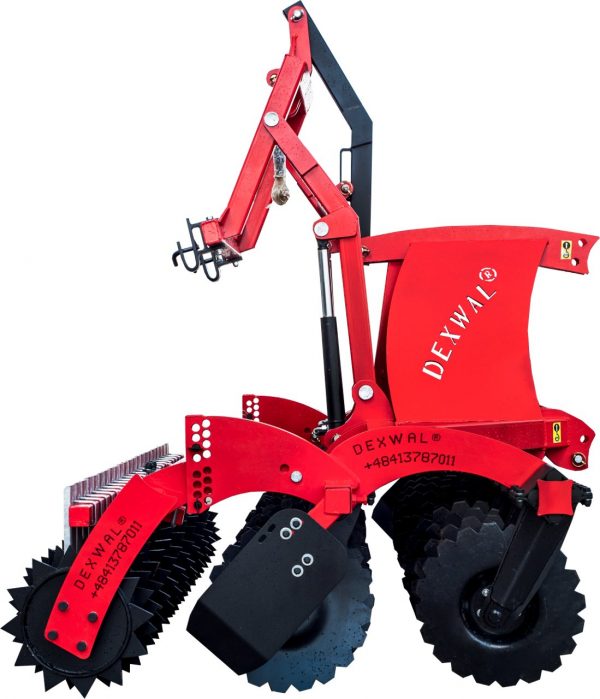

TUR disc aggregate

The TUR disc aggregate is designed for soil cultivation after plowing, before sowing. It will also work well on short stubbles. Its discs, arranged in two rows and made of boron steel (51 cm diameter as standard) cut and mix the soil with great force. The TUR aggregate is available in 3 versions with a working width of 2.5 m, 2.7 m and 3 m and the number of discs (respectively): 20, 22, 24. Standard equipment includes: 51 cm discs, hydropack and polish maintenance-free hubs. You can buy additionally: discs with a diameter of 56 cm, OFAS discs, seeder supports and LTP, SKF and OFAS maintenance-free hubs.

Description

Available rollers:

  • PACKER ROLLER
  • STRING ROLLER
  • TUBULAR ROLLER
  • V-RING ROLLER
  • COGGED STRING ROLLER
  • T-RING ROLLER
  • U-RING ROLLER


Available models

Type Working width (m) Efficiency (ha/h) Number of discs Power demand (H.P.)*
 TUR 2.5  2.5  1.6 – 2.1 20  70 – 110
TUR 2.7  2.7  1.8 – 2.4 22  80 – 120
TUR 3.0  3.0  2 – 3 24 90 – 130

* Power demand and weight depend on the applied type of a roller

Standard equipment:

  • Discs 510
  • Hydropack
  • Polish maintenance-free hubs

Optional equipment:

  • Discs 560
  • Without a hydropack
  • Maintenance-free LTP hubs
  • Maintenance-free SKF hubs
  • Maintenance-free OFAS hubs
  • OFAS discs
  • Seeder supports
