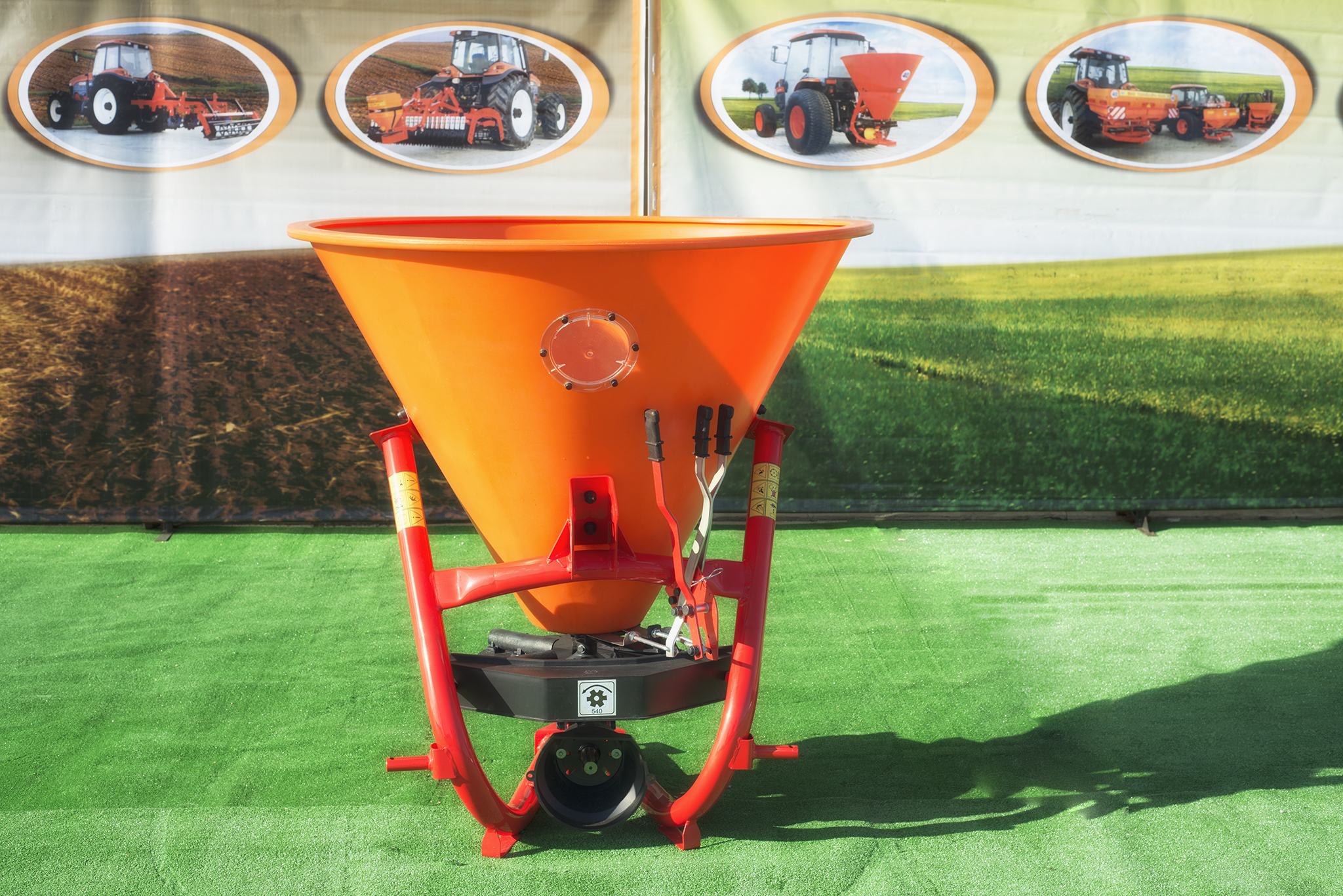

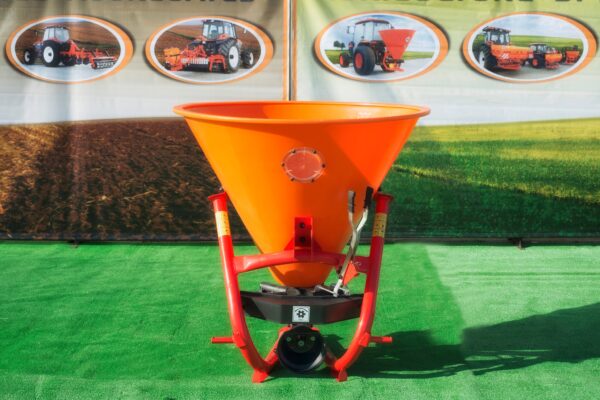

Funnel single-disc spreader

The standard equipment of this spreader includes: an obliqueangle agitator, a tank made of impact-resistant plastic, maintenance-free transmission, multipurpose mounting. Power demand equals 20 H.P., PTO revolutions max. 540. Working width is 4-10 m

Description

  • 6-blade turbine
  • An oblique-angle agitator shreds and prevents sowing material from suspension
  • A tank made of impact-resistant plastic
  • Maintenance-free transmission
  • Multi-purpose mounting
  • Power demand 20 H.P.
  • PTO revolutions max. 540
  • Working width 4 – 10 m


Available models

L200 – 200 L / 300 KG L300 – 300 L / 400 KG L350 – 350 L / 450 KG L400 – 400 L / 500 KG L500 – 500 L / 600 KG
Weight 44 kg Weight 47 kg Weight 49 kg Weight 53 kg Weight 55 kg

T  /  H  /  NH  /  H+NH  /  CDW  /   CDW + NH

* Power demand and weight depend on the applied type of a roller

Standard equipment:

  • T – Blade turbine
  • Oblique-angle agitator
  • Tank
  • Maintenance-free transmission
  • Multi-purpose mounting

Optional equipment:

  • CDW – central discharge lever
  • hydraulic opening/closing system
  • NH – hydraulic drive
